Conventions Used in this Manual
1.1. IntrinsicsThe Intrinsics provide the base mechanism necessary to builda wide variety of interoperating widget sets and applicationenvironments. The Intrinsics are a layer on top of Xlib,the C Library X Interface. They extend the fundamentalabstractions provided by the X Window System while stillremaining independent of any particular user interfacepolicy or style.The Intrinsics use object-oriented programming techniques tosupply a consistent architecture for constructing andcomposing user interface components, known as widgets. Thisallows programmers to extend a widget set in new ways,either by deriving new widgets from existing ones(subclassing) or by writing entirely new widgets followingthe established conventions.When the Intrinsics were first conceived, the root of theobject hierarchy was a widget class named Core. In Release4 of the Intrinsics, three nonwidget superclasses were addedabove Core. These superclasses are described in Chapter 12.The name of the class now at the root of the Intrinsicsclass hierarchy is Object. The remainder of thisspecification refers uniformly to widgets and Core as ifthey were the base class for all Intrinsics operations. Theargument descriptions for each Intrinsics procedure andChapter 12 describe which operations are defined for thenonwidget superclasses of Core. The reader may determine bycontext whether a specific reference to widget actuallymeans ‘‘widget’’ or ‘‘object.’’1.2. LanguagesThe Intrinsics are intended to be used for two programmingpurposes. Programmers writing widgets will be using most ofthe facilities provided by the Intrinsics to construct userinterface components from the simple, such as buttons andscrollbars, to the complex, such as control panels andproperty sheets. Application programmers will use a muchsmaller subset of the Intrinsics procedures in combinationwith one or more sets of widgets to construct and presentcomplete user interfaces on an X display. The Intrinsicsprogramming interfaces primarily intended for applicationuse are designed to be callable from most proceduralprogramming languages. Therefore, most arguments are passedby reference rather than by value. The interfaces primarilyintended for widget programmers are expected to be usedprincipally from the C language. In these cases, the usualC programming conventions apply. In this specification, theterm client refers to any module, widget, or applicationthat calls an Intrinsics procedure.Applications that use the Intrinsics mechanisms must includethe header files <X11/Intrinsic.h> and <X11/StringDefs.h>,or their equivalent, and they may also include<X11/Xatoms.h> and <X11/Shell.h>. In addition, widgetimplementations should include <X11/IntrinsicP.h> instead of<X11/Intrinsic.h>.The applications must also include the additional headerfiles for each widget class that they are to use (forexample, <X11/Xaw/Label.h> or <X11/Xaw/Scrollbar.h>). On aPOSIX-based system, the Intrinsics object library file isnamed libXt.a and is usually referenced as −lXt when linkingthe application.1.3. Procedures and Macros
1.4. Widgets
1.4.1. Core WidgetsThe Core widget class contains the definitions of fieldscommon to all widgets. All widgets classes are subclassesof the Core class, which is defined by the CoreClassPart andCorePart structures.1.4.1.1. CoreClassPart StructureAll widget classes contain the fields defined in theCoreClassPart structure.__│ typedef struct {WidgetClass superclass; See Section 1.6String class_name; See Chapter 9Cardinal widget_size; See Section 1.6XtProc class_initialize; See Section 1.6XtWidgetClassProc class_part_initialize;See Section 1.6XtEnum class_inited; See Section 1.6XtInitProc initialize; See Section 2.5XtArgsProc initialize_hook; See Section 2.5XtRealizeProc realize; See Section 2.6XtActionList actions; See Chapter 10Cardinal num_actions; See Chapter 10XtResourceList resources; See Chapter 9Cardinal num_resources; See Chapter 9XrmClass xrm_class; Private to resource managerBoolean compress_motion; See Section 7.9XtEnum compress_exposure; See Section 7.9Boolean compress_enterleave; See Section 7.9Boolean visible_interest; See Section 7.10XtWidgetProc destroy; See Section 2.8XtWidgetProc resize; See Chapter 6XtExposeProc expose; See Section 7.10XtSetValuesFunc set_values; See Section 9.7XtArgsFunc set_values_hook; See Section 9.7XtAlmostProc set_values_almost;See Section 9.7XtArgsProc get_values_hook; See Section 9.7XtAcceptFocusProc accept_focus;See Section 7.3XtVersionType version; See Section 1.6XtPointer callback_private; Private to callbacksString tm_table; See Chapter 10XtGeometryHandler query_geometry;See Chapter 6XtStringProc display_accelerator;See Chapter 10XtPointer extension; See Section 1.6} CoreClassPart;│__ All widget classes have the Core class fields as their firstcomponent. The prototypical WidgetClass and CoreWidgetClassare defined with only this set of fields.__│ typedef struct {CoreClassPart core_class;} WidgetClassRec, *WidgetClass, CoreClassRec, *CoreWidgetClass;│__ Various routines can cast widget class pointers, as needed,to specific widget class types.The single occurrences of the class record and pointer forcreating instances of Core areIn IntrinsicP.h:__│ extern WidgetClassRec widgetClassRec;#define coreClassRec widgetClassRec│__ In Intrinsic.h:__│ extern WidgetClass widgetClass, coreWidgetClass;│__ The opaque types Widget and WidgetClass and the opaquevariable widgetClass are defined for generic actions onwidgets. In order to make these types opaque and ensurethat the compiler does not allow applications to accessprivate data, the Intrinsics use incomplete structuredefinitions in Intrinsic.h:__│ typedef struct _WidgetClassRec *WidgetClass, *CoreWidgetClass;│__ 1.4.1.2. CorePart StructureAll widget instances contain the fields defined in theCorePart structure.__│ typedef struct _CorePart {Widget self; Described belowWidgetClass widget_class;See Section 1.6Widget parent; See Section 2.5Boolean being_destroyed; See Section 2.8XtCallbackList destroy_callbacks;See Section 2.8XtPointer constraints; See Section 3.6Position x; See Chapter 6Position y; See Chapter 6Dimension width; See Chapter 6Dimension height; See Chapter 6Dimension border_width; See Chapter 6Boolean managed; See Chapter 3Boolean sensitive; See Section 7.7Boolean ancestor_sensitive;See Section 7.7XtTranslations accelerators;See Chapter 10Pixel border_pixel; See Section 2.6Pixmap border_pixmap; See Section 2.6WidgetList popup_list; See Chapter 5Cardinal num_popups; See Chapter 5String name; See Chapter 9Screen *screen; See Section 2.6Colormap colormap; See Section 2.6Window window; See Section 2.6Cardinal depth; See Section 2.6Pixel background_pixel; See Section 2.6Pixmap background_pixmap;See Section 2.6Boolean visible; See Section 7.10Boolean mapped_when_managed;See Chapter 3} CorePart;│__ All widget instances have the Core fields as their firstcomponent. The prototypical type Widget is defined withonly this set of fields.__│ typedef struct {CorePart core;} WidgetRec, *Widget, CoreRec, *CoreWidget;│__ Various routines can cast widget pointers, as needed, tospecific widget types.In order to make these types opaque and ensure that thecompiler does not allow applications to access private data,the Intrinsics use incomplete structure definitions inIntrinsic.h.__│ typedef struct _WidgetRec *Widget, *CoreWidget;│__ 1.4.1.3. Core Resources
1.4.1.4. CorePart Default ValuesThe default values for the Core fields, which are filled inby the Intrinsics, from the resource lists, and by theinitialize procedures, areXtUnspecifiedPixmap is a symbolic constant guaranteed to beunequal to any valid Pixmap id, None, and ParentRelative.1.4.2. Composite WidgetsThe Composite widget class is a subclass of the Core widgetclass (see Chapter 3). Composite widgets are intended to becontainers for other widgets. The additional data used bycomposite widgets are defined by the CompositeClassPart andCompositePart structures.1.4.2.1. CompositeClassPart StructureIn addition to the Core class fields, widgets of theComposite class have the following class fields.__│ typedef struct {XtGeometryHandler geometry_manager;See Chapter 6XtWidgetProc change_managed; See Chapter 3XtWidgetProc insert_child; See Chapter 3XtWidgetProc delete_child; See Chapter 3XtPointer extension; See Section 1.6} CompositeClassPart;│__ The extension record defined for CompositeClassPart withrecord_type equal to NULLQUARK isCompositeClassExtensionRec.__│ typedef struct {XtPointer next_extension; See Section 1.6.12XrmQuark record_type; See Section 1.6.12long version; See Section 1.6.12Cardinal record_size; See Section 1.6.12Boolean accepts_objects; See Section 2.5.2Boolean allows_change_managed_set;See Section 3.4.3} CompositeClassExtensionRec, *CompositeClassExtension;│__ Composite classes have the Composite class fieldsimmediately following the Core class fields.__│ typedef struct {CoreClassPart core_class;CompositeClassPart composite_class;} CompositeClassRec, *CompositeWidgetClass;│__ The single occurrences of the class record and pointer forcreating instances of Composite areIn IntrinsicP.h:__│ extern CompositeClassRec compositeClassRec;│__ In Intrinsic.h:__│ extern WidgetClass compositeWidgetClass;│__ The opaque types CompositeWidget and CompositeWidgetClassand the opaque variable compositeWidgetClass are defined forgeneric operations on widgets whose class is Composite or asubclass of Composite. The symbolic constant for theCompositeClassExtension version identifier isXtCompositeExtensionVersion (see Section 1.6.12).Intrinsic.h uses an incomplete structure definition toensure that the compiler catches attempts to access privatedata.__│ typedef struct _CompositeClassRec *CompositeWidgetClass;│__ 1.4.2.2. CompositePart StructureIn addition to the Core instance fields, widgets of theComposite class have the following instance fields definedin the CompositePart structure.__│ typedef struct {WidgetList children; See Chapter 3Cardinal num_children; See Chapter 3Cardinal num_slots; See Chapter 3XtOrderProc insert_position;See Section 3.2} CompositePart;│__ Composite widgets have the Composite instance fieldsimmediately following the Core instance fields.__│ typedef struct {CorePart core;CompositePart composite;} CompositeRec, *CompositeWidget;│__ Intrinsic.h uses an incomplete structure definition toensure that the compiler catches attempts to access privatedata.__│ typedef struct _CompositeRec *CompositeWidget;│__ 1.4.2.3. Composite ResourcesThe resource names, classes, and representation types thatare specified in the compositeClassRec resource list are1.4.2.4. CompositePart Default ValuesThe default values for the Composite fields, which arefilled in from the Composite resource list and by theComposite initialize procedure, areThe children, num_children, and insert_position fields aredeclared as resources; XtNinsertPosition is a settableresource, XtNchildren and XtNnumChildren may be read by anyclient but should only be modified by the composite widgetclass procedures.1.4.3. Constraint WidgetsThe Constraint widget class is a subclass of the Compositewidget class (see Section 3.6). Constraint widgets maintainadditional state data for each child; for example,client-defined constraints on the child’s geometry. Theadditional data used by constraint widgets are defined bythe ConstraintClassPart and ConstraintPart structures.1.4.3.1. ConstraintClassPart StructureIn addition to the Core and Composite class fields, widgetsof the Constraint class have the following class fields.__│ typedef struct {XtResourceList resources;See Chapter 9Cardinal num_resources; See Chapter 9Cardinal constraint_size;See Section 3.6XtInitProc initialize; See Section 3.6XtWidgetProc destroy; See Section 3.6XtSetValuesFunc set_values;See Section 9.7.2XtPointer extension; See Section 1.6} ConstraintClassPart;│__ The extension record defined for ConstraintClassPart withrecord_type equal to NULLQUARK isConstraintClassExtensionRec.__│ typedef struct {XtPointer next_extension;See Section 1.6.12XrmQuark record_type; See Section 1.6.12long version; See Section 1.6.12Cardinal record_size; See Section 1.6.12XtArgsProc get_values_hook;See Section 9.7.1} ConstraintClassExtensionRec, *ConstraintClassExtension;│__ Constraint classes have the Constraint class fieldsimmediately following the Composite class fields.__│ typedef struct _ConstraintClassRec {CoreClassPart core_class;CompositeClassPart composite_class;ConstraintClassPart constraint_class;} ConstraintClassRec, *ConstraintWidgetClass;│__ The single occurrences of the class record and pointer forcreating instances of Constraint areIn IntrinsicP.h:__│ extern ConstraintClassRec constraintClassRec;│__ In Intrinsic.h:__│ extern WidgetClass constraintWidgetClass;│__ The opaque types ConstraintWidget and ConstraintWidgetClassand the opaque variable constraintWidgetClass are definedfor generic operations on widgets whose class is Constraintor a subclass of Constraint. The symbolic constant for theConstraintClassExtension version identifier isXtConstraintExtensionVersion (see Section 1.6.12).Intrinsic.h uses an incomplete structure definition toensure that the compiler catches attempts to access privatedata.__│ typedef struct _ConstraintClassRec *ConstraintWidgetClass;│__ 1.4.3.2. ConstraintPart StructureIn addition to the Core and Composite instance fields,widgets of the Constraint class have the following unusedinstance fields defined in the ConstraintPart structure__│ typedef struct {int empty;} ConstraintPart;│__ Constraint widgets have the Constraint instance fieldsimmediately following the Composite instance fields.__│ typedef struct {CorePart core;CompositePart composite;ConstraintPart constraint;} ConstraintRec, *ConstraintWidget;│__ Intrinsic.h uses an incomplete structure definition toensure that the compiler catches attempts to access privatedata.__│ typedef struct _ConstraintRec *ConstraintWidget;│__ 1.4.3.3. Constraint ResourcesThe constraintClassRec core_class and constraint_classresources fields are NULL, and the num_resources fields arezero; no additional resources beyond those declared by thesuperclasses are defined for Constraint.1.5. Implementation-Specific TypesTo increase the portability of widget and application sourcecode between different system environments, the Intrinsicsdefine several types whose precise representation isexplicitly dependent upon, and chosen by, each individualimplementation of the Intrinsics.These implementation-defined types areBoolean A datum that contains a zero or nonzero value.Unless explicitly stated, clients should notassume that the nonzero value is equal to thesymbolic value True.Cardinal An unsigned integer datum with a minimum range of[0..2^16-1].Dimension An unsigned integer datum with a minimum range of[0..2^16-1].Position A signed integer datum with a minimum range of[-2^15..2^15-1].XtPointer A datum large enough to contain the largest of achar*, int*, function pointer, structure pointer,or long value. A pointer to any type orfunction, or a long value may be converted to anXtPointer and back again and the result willcompare equal to the original value. In ANSI Cenvironments it is expected that XtPointer willbe defined as void*.XtArgVal A datum large enough to contain an XtPointer,Cardinal, Dimension, or Position value.XtEnum An integer datum large enough to encode at least128 distinct values, two of which are thesymbolic values True and False. The symbolicvalues TRUE and FALSE are also defined to beequal to True and False, respectively.In addition to these specific types, the precise order ofthe fields within the structure declarations for any of theinstance part records ObjectPart, RectObjPart, CorePart,CompositePart, ShellPart, WMShellPart, TopLevelShellPart,and ApplicationShellPart is implementation-defined. Thesestructures may also have additional private fields internalto the implementation. The ObjectPart, RectObjPart, andCorePart structures must be defined so that any member withthe same name appears at the same offset in ObjectRec,RectObjRec, and CoreRec (WidgetRec). No other relationsbetween the offsets of any two fields may be assumed.1.6. Widget Classing

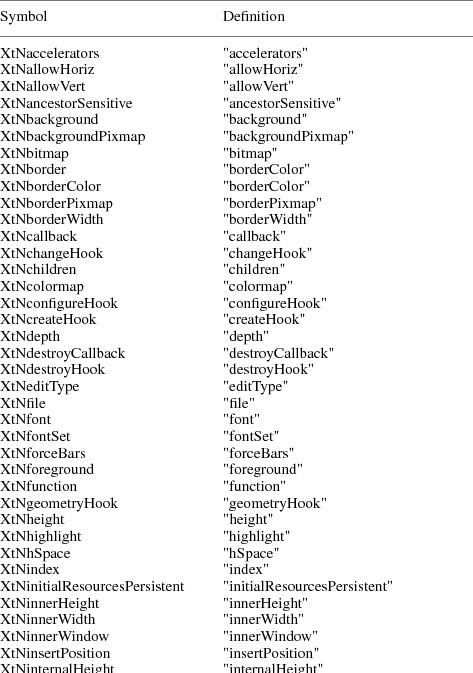

1.6.1. Widget Naming ConventionsThe Intrinsics provide a vehicle by which programmers cancreate new widgets and organize a collection of widgets intoan application. To ensure that applications need not dealwith as many styles of capitalization and spelling as thenumber of widget classes it uses, the following guidelinesshould be followed when writing new widgets:• Use the X library naming conventions that areapplicable. For example, a record component name isall lowercase and uses underscores (_) for compoundwords (for example, background_pixmap). Type andprocedure names start with uppercase and usecapitalization for compound words (for example, ArgListor XtSetValues).• A resource name is spelled identically to the fieldname except that compound names use capitalizationrather than underscore. To let the compiler catchspelling errors, each resource name should have asymbolic identifier prefixed with ‘‘XtN’’. Forexample, the background_pixmap field has thecorresponding identifier XtNbackgroundPixmap, which isdefined as the string ‘‘backgroundPixmap’’. Manypredefined names are listed in <X11/StringDefs.h>.Before you invent a new name, you should make surethere is not already a name that you can use.• A resource class string starts with a capital letterand uses capitalization for compound names (forexample,‘‘BorderWidth’’). Each resource class stringshould have a symbolic identifier prefixed with ‘‘XtC’’(for example, XtCBorderWidth). Many predefined classesare listed in <X11/StringDefs.h>.• A resource representation string is spelled identicallyto the type name (for example, ‘‘TranslationTable’’).Each representation string should have a symbolicidentifier prefixed with ‘‘XtR’’ (for example,XtRTranslationTable). Many predefined representationtypes are listed in <X11/StringDefs.h>.• New widget classes start with a capital and useuppercase for compound words. Given a new class nameAbcXyz, you should derive several names:− Additional widget instance structure part nameAbcXyzPart.− Complete widget instance structure names AbcXyzRecand _AbcXyzRec.− Widget instance structure pointer type nameAbcXyzWidget.− Additional class structure part nameAbcXyzClassPart.− Complete class structure names AbcXyzClassRec and_AbcXyzClassRec.− Class structure pointer type nameAbcXyzWidgetClass.− Class structure variable abcXyzClassRec.− Class structure pointer variableabcXyzWidgetClass.• Action procedures available to translationspecifications should follow the same namingconventions as procedures. That is, they start with acapital letter, and compound names use uppercase (forexample, ‘‘Highlight’’ and ‘‘NotifyClient’’).The symbolic identifiers XtN..., XtC..., and XtR... may beimplemented as macros, as global symbols, or as a mixture ofthe two. The (implicit) type of the identifier is String.The pointer value itself is not significant; clients mustnot assume that inequality of two identifiers impliesinequality of the resource name, class, or representationstring. Clients should also note that although globalsymbols permit savings in literal storage in someenvironments, they also introduce the possibility ofmultiple definition conflicts when applications attempt touse independently developed widgets simultaneously.1.6.2. Widget Subclassing in Public .h FilesThe public .h file for a widget class is imported by clientsand contains• A reference to the public .h file for the superclass.• Symbolic identifiers for the names and classes of thenew resources that this widget adds to its superclass.The definitions should have a single space between thedefinition name and the value and no trailing space orcomment in order to reduce the possibility of compilerwarnings from similar declarations in multiple classes.• Type declarations for any new resource data typesdefined by the class.• The class record pointer variable used to create widgetinstances.• The C type that corresponds to widget instances of thisclass.• Entry points for new class methods.For example, the following is the public .h file for apossible implementation of a Label widget:#ifndef LABEL_H#define LABEL_H/* New resources */#define XtNjustify "justify"#define XtNforeground "foreground"#define XtNlabel "label"#define XtNfont "font"#define XtNinternalWidth "internalWidth"#define XtNinternalHeight "internalHeight"/* Class record pointer */extern WidgetClass labelWidgetClass;/* C Widget type definition */typedef struct _LabelRec *LabelWidget;/* New class method entry points */extern void LabelSetText();/* Widget w *//* String text */extern String LabelGetText();/* Widget w */#endif LABEL_HThe conditional inclusion of the text allows the applicationto include header files for different widgets without beingconcerned that they already may be included as a superclassof another widget.To accommodate operating systems with file name lengthrestrictions, the name of the public .h file is the firstten characters of the widget class. For example, the public.h file for the Constraint widget class is Constraint.h.1.6.3. Widget Subclassing in Private .h FilesThe private .h file for a widget is imported by widgetclasses that are subclasses of the widget and contains• A reference to the public .h file for the class.• A reference to the private .h file for the superclass.• Symbolic identifiers for any new resourcerepresentation types defined by the class. Thedefinitions should have a single space between thedefinition name and the value and no trailing space orcomment.• A structure part definition for the new fields that thewidget instance adds to its superclass’s widgetstructure.• The complete widget instance structure definition forthis widget.• A structure part definition for the new fields thatthis widget class adds to its superclass’s constraintstructure if the widget class is a subclass ofConstraint.• The complete constraint structure definition if thewidget class is a subclass of Constraint.• Type definitions for any new procedure types used byclass methods declared in the widget class part.• A structure part definition for the new fields thatthis widget class adds to its superclass’s widget classstructure.• The complete widget class structure definition for thiswidget.• The complete widget class extension structuredefinition for this widget, if any.• The symbolic constant identifying the class extensionversion, if any.• The name of the global class structure variablecontaining the generic class structure for this class.• An inherit constant for each new procedure in thewidget class part structure.For example, the following is the private .h file for apossible Label widget:#ifndef LABELP_H#define LABELP_H#include <X11/Label.h>/* New representation types used by the Label widget */#define XtRJustify "Justify"/* New fields for the Label widget record */typedef struct {/* Settable resources */Pixel foreground;XFontStruct *font;String label; /* text to display */XtJustify justify;Dimension internal_width;/* # pixels horizontal border */Dimension internal_height;/* # pixels vertical border *//* Data derived from resources */GC normal_GC;GC gray_GC;Pixmap gray_pixmap;Position label_x;Position label_y;Dimension label_width;Dimension label_height;Cardinal label_len;Boolean display_sensitive;} LabelPart;/* Full instance record declaration */typedef struct _LabelRec {CorePart core;LabelPart label;} LabelRec;/* Types for Label class methods */typedef void (*LabelSetTextProc)();/* Widget w *//* String text */typedef String (*LabelGetTextProc)();/* Widget w *//* New fields for the Label widget class record */typedef struct {LabelSetTextProc set_text;LabelGetTextProc get_text;XtPointer extension;} LabelClassPart;/* Full class record declaration */typedef struct _LabelClassRec {CoreClassPart core_class;LabelClassPart label_class;} LabelClassRec;/* Class record variable */extern LabelClassRec labelClassRec;#define LabelInheritSetText((LabelSetTextProc)_XtInherit)#define LabelInheritGetText((LabelGetTextProc)_XtInherit)#endif LABELP_HTo accommodate operating systems with file name lengthrestrictions, the name of the private .h file is the firstnine characters of the widget class followed by a capital P.For example, the private .h file for the Constraint widgetclass is ConstrainP.h.1.6.4. Widget Subclassing in .c FilesThe .c file for a widget contains the structure initializerfor the class record variable, which contains the followingparts:• Class information (for example, superclass, class_name,widget_size, class_initialize, and class_inited).• Data constants (for example, resources andnum_resources, actions and num_actions,visible_interest, compress_motion, compress_exposure,and version).• Widget operations (for example, initialize, realize,destroy, resize, expose, set_values, accept_focus, andany new operations specific to the widget).The superclass field points to the superclass global classrecord, declared in the superclass private .h file. Fordirect subclasses of the generic core widget, superclassshould be initialized to the address of the widgetClassRecstructure. The superclass is used for class chainingoperations and for inheriting or enveloping a superclass’soperations (see Sections 1.6.7, 1.6.9, and 1.6.10).The class_name field contains the text name for this class,which is used by the resource manager. For example, theLabel widget has the string ‘‘Label’’. More than one widgetclass can share the same text class name. This string mustbe permanently allocated prior to or during the execution ofthe class initialization procedure and must not besubsequently deallocated.The widget_size field is the size of the correspondingwidget instance structure (not the size of the classstructure).The version field indicates the toolkit implementationversion number and is used for runtime consistency checkingof the X Toolkit and widgets in an application. Widgetwriters must set it to the implementation-defined symbolicvalue XtVersion in the widget class structureinitialization. Those widget writers who believe that theirwidget binaries are compatible with other implementations ofthe Intrinsics can put the special value XtVersionDontCheckin the version field to disable version checking for thosewidgets. If a widget needs to compile alternative code fordifferent revisions of the Intrinsics interface definition,it may use the symbol XtSpecificationRelease, as describedin Chapter 13. Use of XtVersion allows the Intrinsicsimplementation to recognize widget binaries that werecompiled with older implementations.The extension field is for future upward compatibility. Ifthe widget programmer adds fields to class parts, allsubclass structure layouts change, requiring completerecompilation. To allow clients to avoid recompilation, anextension field at the end of each class part can point to arecord that contains any additional class informationrequired.All other fields are described in their respective sections.The .c file also contains the declaration of the globalclass structure pointer variable used to create instances ofthe class. The following is an abbreviated version of the.c file for a Label widget. The resources table isdescribed in Chapter 9./* Resources specific to Label */static XtResource resources[] = {{XtNforeground, XtCForeground, XtRPixel, sizeof(Pixel),XtOffset(LabelWidget, label.foreground), XtRString,XtDefaultForeground},{XtNfont, XtCFont, XtRFontStruct, sizeof(XFontStruct *),XtOffset(LabelWidget, label.font),XtRString,XtDefaultFont},{XtNlabel, XtCLabel, XtRString, sizeof(String),XtOffset(LabelWidget, label.label), XtRString, NULL},...}/* Forward declarations of procedures */static void ClassInitialize();static void Initialize();static void Realize();static void SetText();static void GetText();.../* Class record constant */LabelClassRec labelClassRec = {{ /* core_class fields *//* superclass */ (WidgetClass)&coreClassRec,/* class_name */ "Label",/* widget_size */ sizeof(LabelRec),/* class_initialize */ClassInitialize,/* class_part_initialize */NULL,/* class_inited */False,/* initialize */ Initialize,/* initialize_hook */NULL,/* realize */ Realize,/* actions */ NULL,/* num_actions */ 0,/* resources */ resources,/* num_resources */XtNumber(resources),/* xrm_class */ NULLQUARK,/* compress_motion */True,/* compress_exposure */True,/* compress_enterleave */True,/* visible_interest */False,/* destroy */ NULL,/* resize */ Resize,/* expose */ Redisplay,/* set_values */ SetValues,/* set_values_hook */NULL,/* set_values_almost */XtInheritSetValuesAlmost,/* get_values_hook */NULL,/* accept_focus */NULL,/* version */ XtVersion,/* callback_offsets */NULL,/* tm_table */ NULL,/* query_geometry */XtInheritQueryGeometry,/* display_accelerator */NULL,/* extension */ NULL},{ /* Label_class fields *//* get_text */ GetText,/* set_text */ SetText,/* extension */ NULL}};/* Class record pointer */WidgetClass labelWidgetClass = (WidgetClass) &labelClassRec;/* New method access routines */void LabelSetText(w, text)Widget w;String text;{ Label WidgetClass lwc = (Label WidgetClass)XtClass(w);XtCheckSubclass(w, labelWidgetClass, NULL);*(lwc->label_class.set_text)(w, text)}/* Private procedures */...1.6.5. Widget Class and Superclass Look UpTo obtain the class of a widget, use XtClass.__│ WidgetClass XtClass(w)Widget w;w Specifies the widget. Must be of class Object orany subclass thereof.│__ The XtClass function returns a pointer to the widget’s classstructure.To obtain the superclass of a widget, use XtSuperclass.__│ WidgetClass XtSuperclass(w)Widget w;w Specifies the widget. Must be of class Object orany subclass thereof.│__ The XtSuperclass function returns a pointer to the widget’ssuperclass class structure.1.6.6. Widget Subclass VerificationTo check the subclass to which a widget belongs, useXtIsSubclass.__│ Boolean XtIsSubclass(w, widget_class)Widget w;WidgetClass widget_class;w Specifies the widget or object instance whoseclass is to be checked. Must be of class Objector any subclass thereof.widget_classSpecifies the widget class for which to test. Mustbe objectClass or any subclass thereof.│__ The XtIsSubclass function returns True if the class of thespecified widget is equal to or is a subclass of thespecified class. The widget’s class can be any number ofsubclasses down the chain and need not be an immediatesubclass of the specified class. Composite widgets thatneed to restrict the class of the items they contain can useXtIsSubclass to find out if a widget belongs to the desiredclass of objects.To test if a given widget belongs to a subclass of anIntrinsics-defined class, the Intrinsics define macros orfunctions equivalent to XtIsSubclass for each of thebuilt-in classes. These procedures are XtIsObject,XtIsRectObj, XtIsWidget, XtIsComposite, XtIsConstraint,XtIsShell, XtIsOverrideShell, XtIsWMShell, XtIsVendorShell,XtIsTransientShell, XtIsTopLevelShell, XtIsApplicationShell,and XtIsSessionShell.All these macros and functions have the same argumentdescription.__│ Boolean XtIs<class> (w)Widget w;w Specifies the widget or object instance whoseclass is to be checked. Must be of class Objector any subclass thereof.│__ These procedures may be faster than calling XtIsSubclassdirectly for the built-in classes.To check a widget’s class and to generate a debugging errormessage, use XtCheckSubclass, defined in <X11/IntrinsicP.h>:__│ void XtCheckSubclass(w, widget_class, message)Widget w;WidgetClass widget_class;String message;w Specifies the widget or object whose class is tobe checked. Must be of class Object or anysubclass thereof.widget_classSpecifies the widget class for which to test.Must be objectClass or any subclass thereof.message Specifies the message to be used.│__ The XtCheckSubclass macro determines if the class of thespecified widget is equal to or is a subclass of thespecified class. The widget’s class can be any number ofsubclasses down the chain and need not be an immediatesubclass of the specified class. If the specified widget’sclass is not a subclass, XtCheckSubclass constructs an errormessage from the supplied message, the widget’s actualclass, and the expected class and calls XtErrorMsg.XtCheckSubclass should be used at the entry point ofexported routines to ensure that the client has passed in avalid widget class for the exported operation.XtCheckSubclass is only executed when the module has beencompiled with the compiler symbol DEBUG defined; otherwise,it is defined as the empty string and generates no code.1.6.7. Superclass ChainingWhile most fields in a widget class structure areself-contained, some fields are linked to theircorresponding fields in their superclass structures. With alinked field, the Intrinsics access the field’s value onlyafter accessing its corresponding superclass value (calleddownward superclass chaining) or before accessing itscorresponding superclass value (called upward superclasschaining). The self-contained fields areIn all widget classes:class_nameclass_initializewidget_sizerealizevisible_interestresizeexposeaccept_focuscompress_motioncompress_exposurecompress_enterleaveset_values_almosttm_tableversionallocatedeallocateIn Composite widget classes:geometry_managerchange_managedinsert_childdelete_childaccepts_objectsallows_change_managed_setIn Constraint widget classes:constraint_sizeIn Shell widget classes:root_geometry_managerWith downward superclass chaining, the invocation of anoperation first accesses the field from the Object, RectObj,and Core class structures, then from the subclass structure,and so on down the class chain to that widget’s classstructure. These superclass-to-subclass fields areclass_part_initializeget_values_hookinitializeinitialize_hookset_valuesset_values_hookresourcesIn addition, for subclasses of Constraint, the followingfields of the ConstraintClassPart andConstraintClassExtensionRec structures are chained from theConstraint class down to the subclass:resourcesinitializeset_valuesget_values_hookWith upward superclass chaining, the invocation of anoperation first accesses the field from the widget classstructure, then from the superclass structure, and so on upthe class chain to the Core, RectObj, and Object classstructures. The subclass-to-superclass fields aredestroyactionsFor subclasses of Constraint, the following field ofConstraintClassPart is chained from the subclass up to theConstraint class:destroy1.6.8. Class Initialization: class_initialize andclass_part_initialize ProceduresMany class records can be initialized completely at compileor link time. In some cases, however, a class may need toregister type converters or perform other sorts of once-onlyruntime initialization.Because the C language does not have initializationprocedures that are invoked automatically when a programstarts up, a widget class can declare a class_initializeprocedure that will be automatically called exactly once bythe Intrinsics. A class initialization procedure pointer isof type XtProc:__│ typedef void (*XtProc)(void);│__ A widget class indicates that it has no class initializationprocedure by specifying NULL in the class_initialize field.In addition to the class initialization that is done exactlyonce, some classes perform initialization for fields intheir parts of the class record. These are performed notjust for the particular class, but for subclasses as well,and are done in the class’s class part initializationprocedure, a pointer to which is stored in theclass_part_initialize field. The class_part_initializeprocedure pointer is of type XtWidgetClassProc.__│ typedef void (*XtWidgetClassProc)(WidgetClass);WidgetClass widget_class;widget_classPoints to the class structure for the class beinginitialized.│__ During class initialization, the class part initializationprocedures for the class and all its superclasses are calledin superclass-to-subclass order on the class record. Theseprocedures have the responsibility of doing any dynamicinitializations necessary to their class’s part of therecord. The most common is the resolution of any inheritedmethods defined in the class. For example, if a widgetclass C has superclasses Core, Composite, A, and B, theclass record for C first is passed to Core ’sclass_part_initialize procedure. This resolves anyinherited Core methods and compiles the textualrepresentations of the resource list and action table thatare defined in the class record. Next, Composite’sclass_part_initialize procedure is called to initialize thecomposite part of C’s class record. Finally, theclass_part_initialize procedures for A, B, and C, in thatorder, are called. For further information, see Section1.6.9. Classes that do not define any new class fields orthat need no extra processing for them can specify NULL inthe class_part_initialize field.All widget classes, whether they have a class initializationprocedure or not, must start with their class_inited fieldFalse.The first time a widget of a class is created,XtCreateWidget ensures that the widget class and allsuperclasses are initialized, in superclass-to-subclassorder, by checking each class_inited field and, if it isFalse, by calling the class_initialize and theclass_part_initialize procedures for the class and all itssuperclasses. The Intrinsics then set the class_initedfield to a nonzero value. After the one-timeinitialization, a class structure is constant.The following example provides the class initializationprocedure for a Label class.static void ClassInitialize(){ XtSetTypeConverter(XtRString, XtRJustify, CvtStringToJustify,NULL, 0, XtCacheNone, NULL);}1.6.9. Initializing a Widget ClassA class is initialized when the first widget of that classor any subclass is created. To initialize a widget classwithout creating any widgets, use XtInitializeWidgetClass.__│ void XtInitializeWidgetClass(object_class)WidgetClass object_class;object_classSpecifies the object class to initialize. May beobjectClass or any subclass thereof.│__ If the specified widget class is already initialized,XtInitializeWidgetClass returns immediately.If the class initialization procedure registers typeconverters, these type converters are not available untilthe first object of the class or subclass is created orXtInitializeWidgetClass is called (see Section 9.6).1.6.10. Inheritance of Superclass OperationsA widget class is free to use any of its superclass’sself-contained operations rather than implementing its owncode. The most frequently inherited operations areexposerealizeinsert_childdelete_childgeometry_managerset_values_almostTo inherit an operation xyz, specify the constantXtInheritXyz in your class record.Every class that declares a new procedure in its widgetclass part must provide for inheriting the procedure in itsclass_part_initialize procedure. The chained operationsdeclared in Core and Constraint records are never inherited.Widget classes that do nothing beyond what their superclassdoes specify NULL for chained procedures in their classrecords.Inheriting works by comparing the value of the field with aknown, special value and by copying in the superclass’svalue for that field if a match occurs. This special value,called the inheritance constant, is usually the Intrinsicsinternal value _XtInherit cast to the appropriate type._XtInherit is a procedure that issues an error message if itis actually called.For example, CompositeP.h contains these definitions:#define XtInheritGeometryManager ((XtGeometryHandler) _XtInherit)#define XtInheritChangeManaged ((XtWidgetProc) _XtInherit)#define XtInheritInsertChild ((XtArgsProc) _XtInherit)#define XtInheritDeleteChild ((XtWidgetProc) _XtInherit)Composite’s class_part_initialize procedure begins asfollows:static void CompositeClassPartInitialize(widgetClass)WidgetClass widgetClass;{ CompositeWidgetClass wc = (CompositeWidgetClass)widgetClass;CompositeWidgetClass super = (CompositeWidgetClass)wc->core_class.superclass;if (wc->composite_class.geometry_manager == XtInheritGeometryManager) {wc->composite_class.geometry_manager = super->composite_class.geometry_manager;}if (wc->composite_class.change_managed == XtInheritChangeManaged) {wc->composite_class.change_managed = super->composite_class.change_managed;}...Nonprocedure fields may be inherited in the same manner asprocedure fields. The class may declare any reserved valueit wishes for the inheritance constant for its new fields.The following inheritance constants are defined:For Object:XtInheritAllocateXtInheritDeallocateFor Core:XtInheritRealizeXtInheritResizeXtInheritExposeXtInheritSetValuesAlmostXtInheritAcceptFocusXtInheritQueryGeometryXtInheritTranslationsXtInheritDisplayAcceleratorFor Composite:XtInheritGeometryManagerXtInheritChangeManagedXtInheritInsertChildXtInheritDeleteChildFor Shell:XtInheritRootGeometryManager1.6.11. Invocation of Superclass OperationsA widget sometimes needs to call a superclass operation thatis not chained. For example, a widget’s expose proceduremight call its superclass’s expose and then perform a littlemore work on its own. For example, a Composite class withpredefined managed children can implement insert_child byfirst calling its superclass’s insert_child and then callingXtManageChild to add the child to the managed set.NoteA class method should not use XtSuperclass butshould instead call the class method of its ownspecific superclass directly through thesuperclass record. That is, it should use its ownclass pointers only, not the widget’s classpointers, as the widget’s class may be a subclassof the class whose implementation is beingreferenced.This technique is referred to as enveloping the superclass’soperation.1.6.12. Class Extension RecordsIt may be necessary at times to add new fields to alreadyexisting widget class structures. To permit this to be donewithout requiring recompilation of all subclasses, the lastfield in a class part structure should be an extensionpointer. If no extension fields for a class have yet beendefined, subclasses should initialize the value of theextension pointer to NULL.If extension fields exist, as is the case with theComposite, Constraint, and Shell classes, subclasses canprovide values for these fields by setting the extensionpointer for the appropriate part in their class structure topoint to a statically declared extension record containingthe additional fields. Setting the extension field is nevermandatory; code that uses fields in the extension recordmust always check the extension field and take someappropriate default action if it is NULL.In order to permit multiple subclasses and libraries tochain extension records from a single extension field,extension records should be declared as a linked list, andeach extension record definition should contain thefollowing four fields at the beginning of the structuredeclaration:__│ struct {XtPointer next_extension;XrmQuark record_type;long version;Cardinal record_size;};next_extensionSpecifies the next record in the list, or NULL.record_type Specifies the particular structure declarationto which each extension record instanceconforms.version Specifies a version id symbolic constantsupplied by the definer of the structure.record_size Specifies the total number of bytes allocatedfor the extension record.│__ The record_type field identifies the contents of theextension record and is used by the definer of the record tolocate its particular extension record in the list. Therecord_type field is normally assigned the result ofXrmStringToQuark for a registered string constant. TheIntrinsics reserve all record type strings beginning withthe two characters ‘‘XT’’ for future standard uses. Thevalue NULLQUARK may also be used by the class part owner inextension records attached to its own class part extensionfield to identify the extension record unique to thatparticular class.The version field is an owner-defined constant that may beused to identify binary files that have been compiled withalternate definitions of the remainder of the extensionrecord data structure. The private header file for a widgetclass should provide a symbolic constant for subclasses touse to initialize this field. The record_size field valueincludes the four common header fields and should normallybe initialized with sizeof().Any value stored in the class part extension fields ofCompositeClassPart, ConstraintClassPart, or ShellClassPartmust point to an extension record conforming to thisdefinition.The Intrinsics provide a utility function for widget writersto locate a particular class extension record in a linkedlist, given a widget class and the offset of the extensionfield in the class record.To locate a class extension record, use XtGetClassExtension.__│ XtPointer XtGetClassExtension(object_class, byte_offset, type, version, record_size)WidgetClass object_class;Cardinal byte_offset;XrmQuark type;long version;Cardinal record_size;object_classSpecifies the object class containing theextension list to be searched.byte_offsetSpecifies the offset in bytes from the base of theclass record of the extension field to besearched.type Specifies the record_type of the class extensionto be located.version Specifies the minimum acceptable version of theclass extension required for a match.record_sizeSpecifies the minimum acceptable length of theclass extension record required for a match, or 0.│__ The list of extension records at the specified offset in thespecified object class will be searched for a match on thespecified type, a version greater than or equal to thespecified version, and a record size greater than or equalthe specified record_size if it is nonzero.XtGetClassExtension returns a pointer to a matchingextension record or NULL if no match is found. The returnedextension record must not be modified or freed by the callerif the caller is not the extension owner.1
